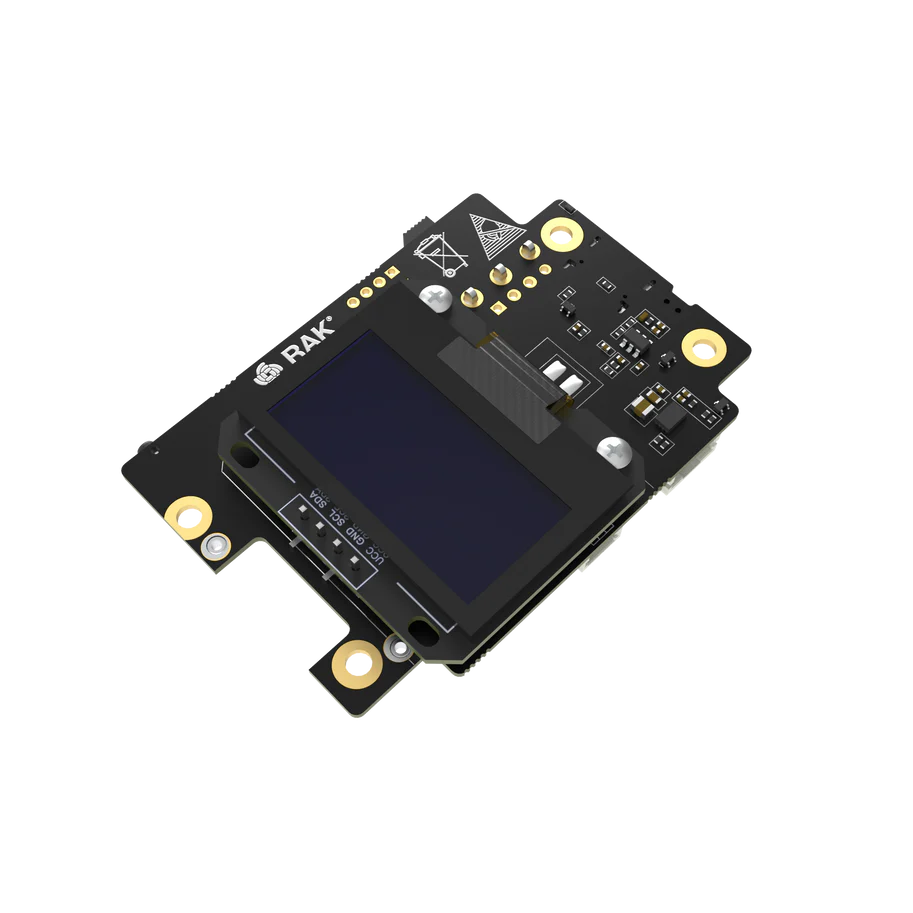

WisMesh BaseBoard RAK19026

Designed for Meshtastic Devices, The WisMesh Base Board RAK19026 is the perfect start to explore and use the Meshtastic LoRa Mesh Network. It comes with a nRF52840 RAK4630 LoRa module pre-flashed with the Meshtastic firmware. It integrates a 1.3”  OLED display, onboard GNSS location module (u-blox ZOE-M8Q), onboard motion sensor (ST LIS3DH) and additional three WisBlock Sensor and one WisBlock IO module slot. This combination includes everything required to build a Meshtastic device matching your own requirements.

For improved user experience, it has an integrated user programmable button and an on/off switch that disconnects the battery complete from the electronics but allows to recharge the battery through USB or solar battery.

Product Features

• RAK4630 WisDuo module, pre-flashed with the Meshtastic firmware
  • Nordic nRF52840:
    • Ultra-low-power MCU
    • 32-bit ARM® Cortex-M4F CPU
    • 64MHz CPU clock
    • 1 MB Flash, 256 KB RAM
  • Semtech SX1262:
    • Low power high range
    • LoRa® transceiver
• 3 sensor slots
• 1 IO slot
• Battery switch
• User button
• Connector for OLED display
• GPIO exposure on pin header
• 1.3” OLED display (pre-mounted or optional connected through a pin header)
• U-Blox ZOE-M8Q GNSS location module onboard
• ST LIS3DH motion sensor onboard
• LoRa and BLE antenna included

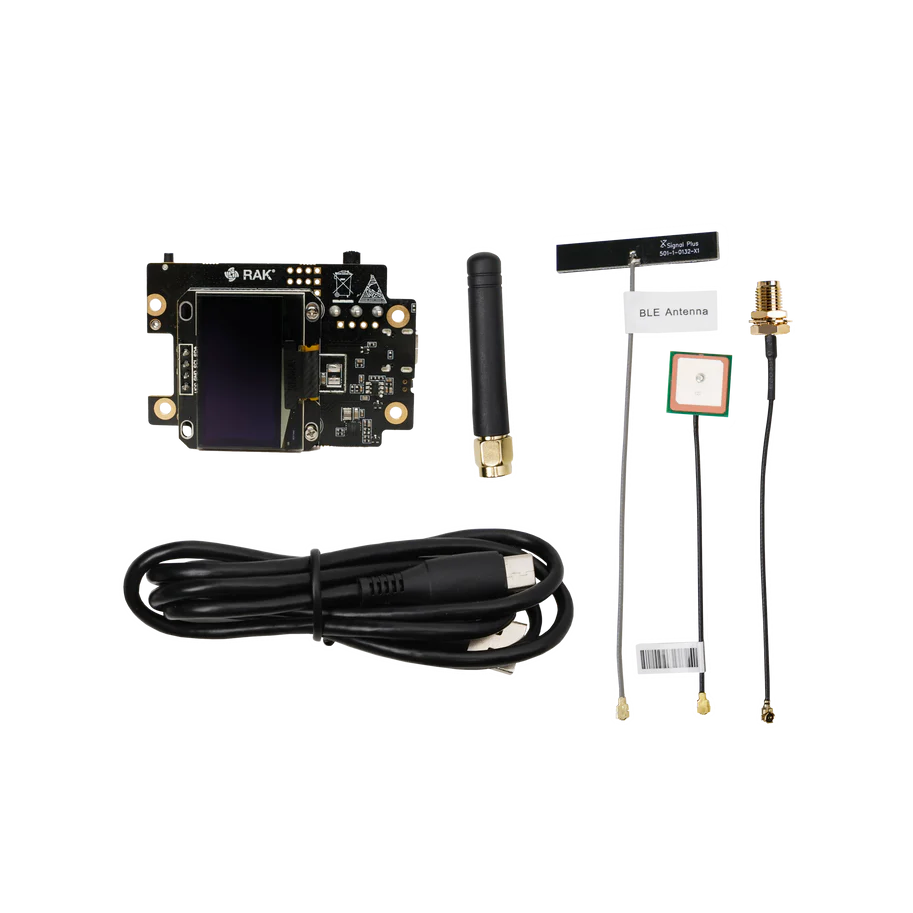

Product Inclusions

• 1 pc RAK19026 WisMesh BaseBoard
• 1 pc OLED display (optional)
• 1 pc LoRa antenna
• 1 pc BLE antenna
• 1 pc GPS antenna
• 1 pc USB cable
